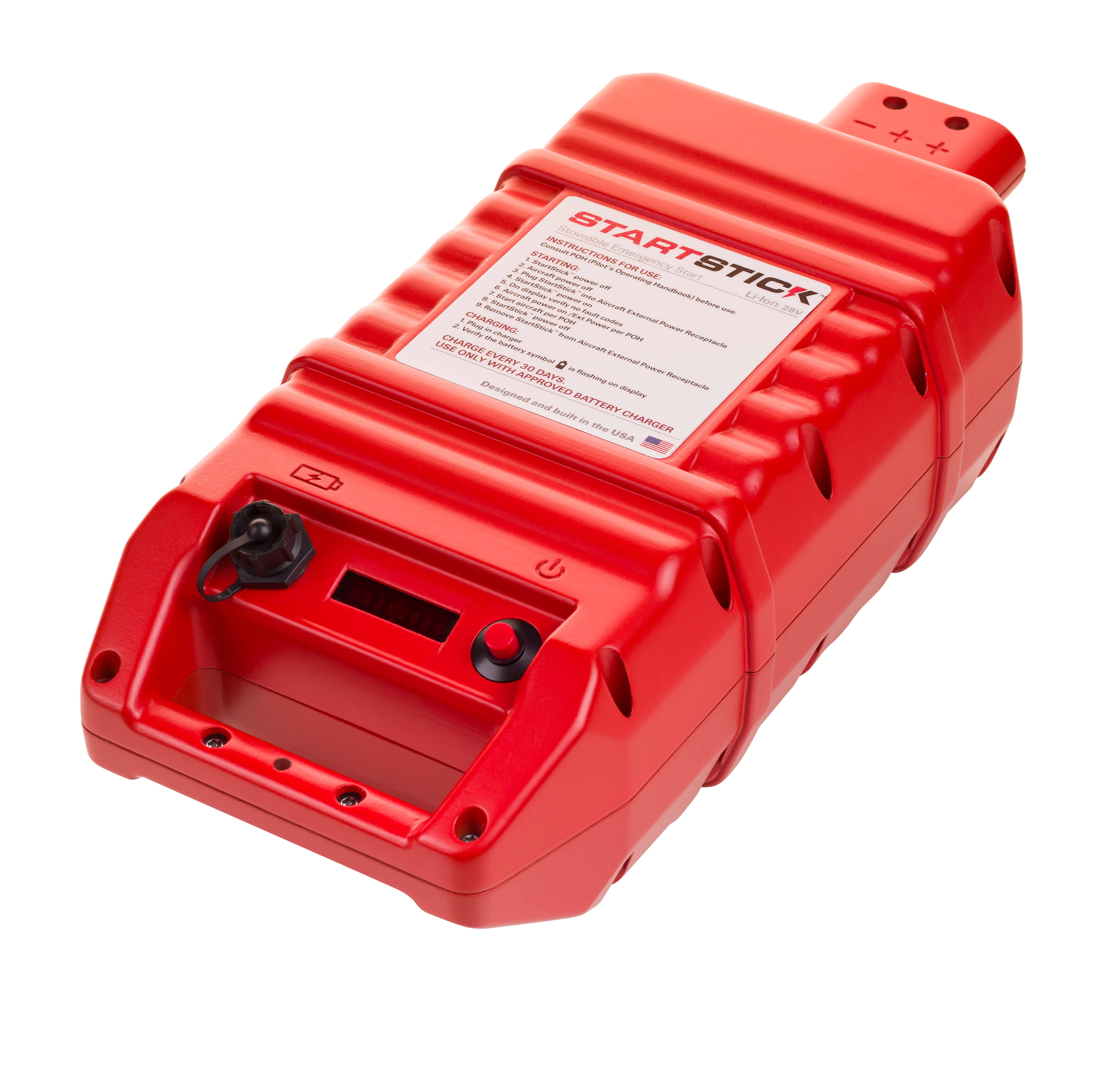

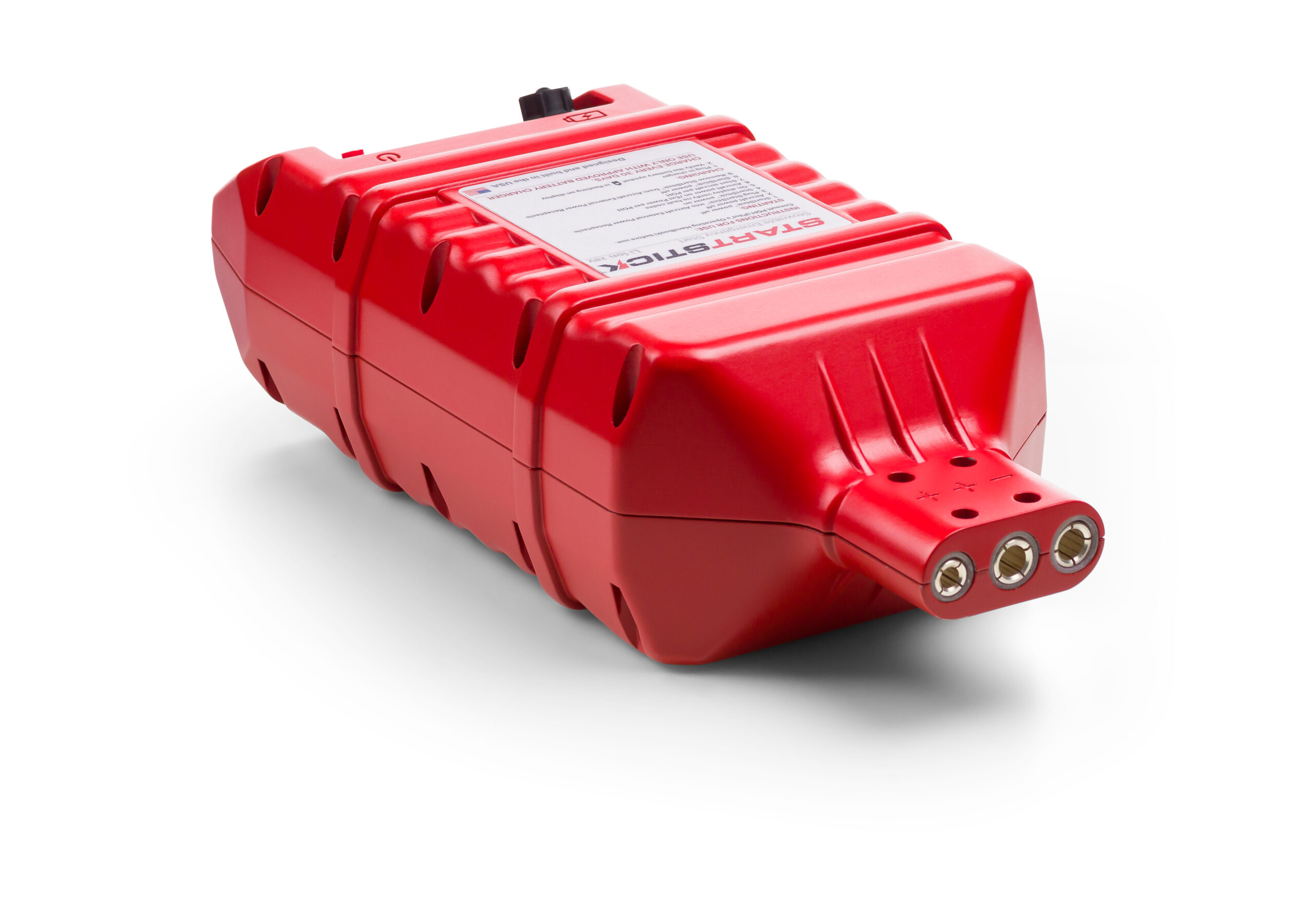

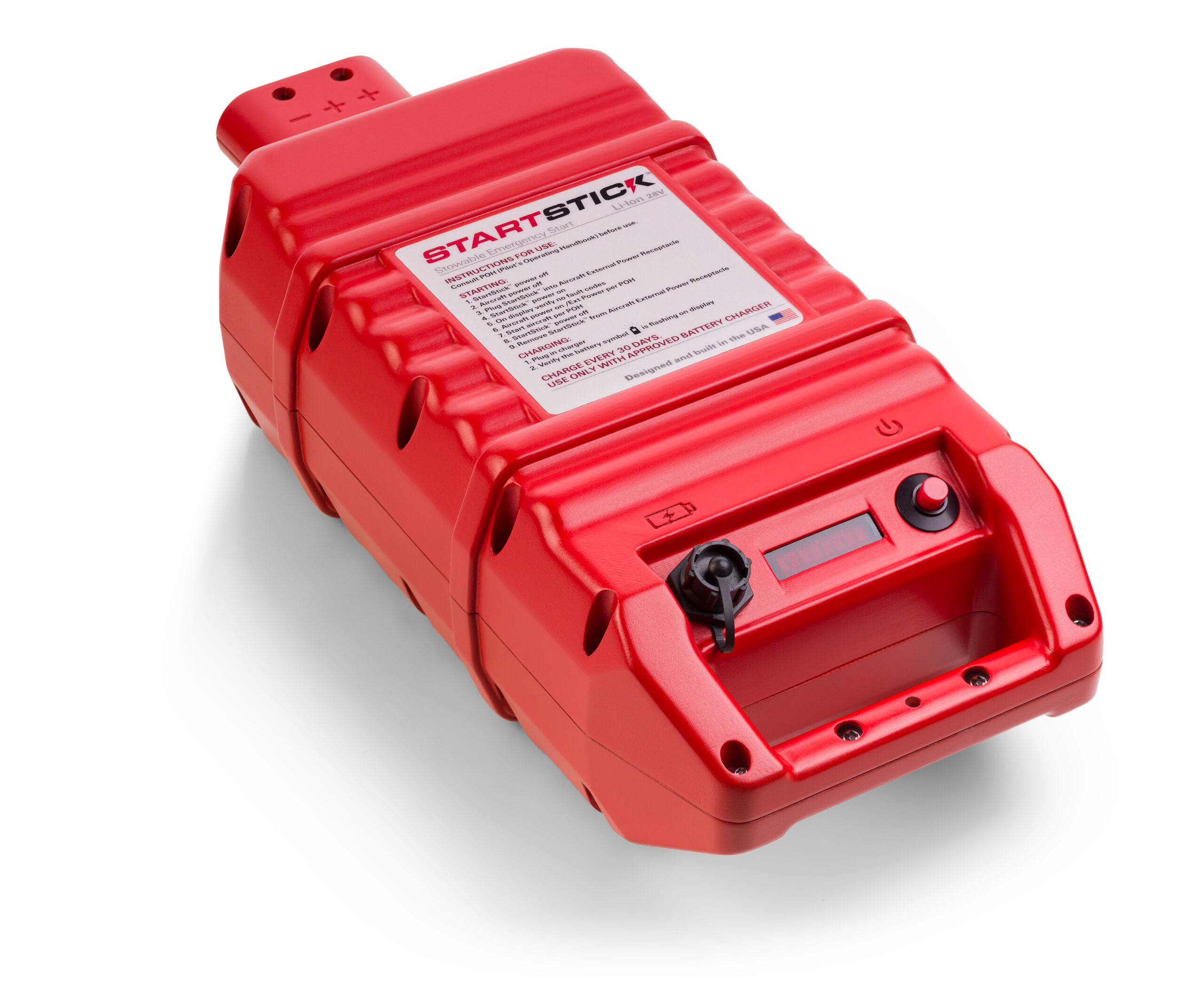

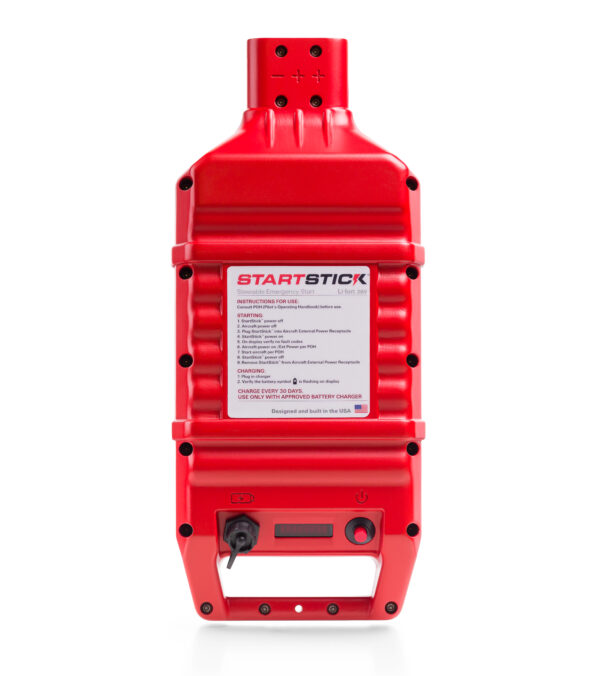

StartStick 20Ah

$5,695.00

Please call or email for current lead times, expedited shipping options, or for shipping outside the US.

Clear
SKU: 100156 Category:

Description

Lightweight/portable GPU
for ramp and hanger or
off-airport operations.

BENEFITS FOR FIXED WING AIRCRAFT AND HELICOPTERS

  • Fully Serviceable Battery Pack
  • 3 to 4 Engine Starts Per Charge
  • Transmits up to 28 kilowatts of power
  • Smart Lithium Technology
  • 3,000 to 4,000 starts – Time Before Overhaul
  • Charge Port attaches to on-board auxiliary power supply
  • Includes 120/220V 50/60hzs battery charger
  • Short Circuit Protection
  • Impact, water and chemical resistant polymer case
  • 2-year Warranty
Weight 19.4 lbs
Load on GPU Connector 38.8 lbs/foot
Length 17.25″
Width 7.31″
Height 4.27″
Electrical Specifications
Capacity 19.4 Ah
Capacity (lead acid equivalent) 38.8 Ah
Nominal Voltage 26.4 Volts
Max current (Pulse) 1600 Amps
Max current (Continuous) 400 Amps
Max current (Chemistry) 51733 Amps
Operating Temperature -30 to 60 deg C
AC Charger Input Voltage 110/240 Volts
In-Flight Charge Circuit Rating 5 Amps
Charge Rate (software regulated) 3.5 Amps
Battery Life
Number of starts per charge 3 to 4
Time before discharge 60 minutes
Charge Cycles >1,000
Engine Starts 3,000 – 4,000
Charge Time (after one start) 30-40 minutes
Charge Time (dead battery) 5.6 hours
Misc Specifications
State of Charge Indicator Yes
Ballistic Nylon Case Yes
UNDOT Tested Yes
Injection Molded Case Yes
Emergency Start Yes
Ground Operations Yes
Database Updates Yes
On-Board Charger Yes
Fully Sealed Yes
Automatic Shut-off Yes
High Rate Charging Yes
2-Year Warranty Yes
Military Grade No

Additional information

Weight 24 lbs
Dimensions 24 × 12 × 10 in
